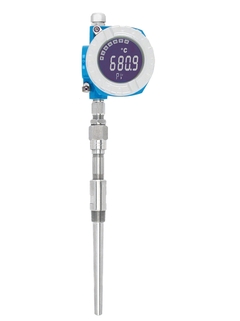

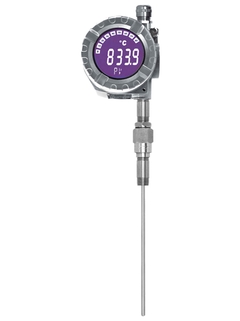

Name: Thermocouple TMT162C
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

TMT162C TC Thermometer, field transmitter,display

Predecessor

TMD833C

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with protection tube for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

US style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
with neck
to use with thermowell
backlit display
Thermowell / protection tube

to use with thermowell
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

6,0 mm (0,24'')
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

Not defined
Optional coating

Not defined
Process connection

male thread:
G1/2"
NPT1/2"
NPT3/4"
M24x1.5
Tip shape

straight
Operating temperature range

Type K:
-40 °C ...800 °C
(-40 °F ...1.472 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Max. process pressure (static)

up to 20 °C: 480 bar (6.962 psi)
Accuracy

class 1 acc. to IEC 60584
class 2 acc. to IEC 60584
Response time

depending on configuration
t50 = 3 s
t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II
ATEX Eex
explosion proof
Certification

Gost Metrology

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

O-Ring 88x3 HNBR 70o Shore PTFE

Sealing

Drawing number

Order code

6

71502617
Cover latch spares kit field housing

Housing/housing accessories

Drawing number

Order code

7

51004948
Display holder kit (3 pieces)

Display

Drawing number

Order code

2

71310423
Spare Parts TMT162

Display

Drawing number

Order code

2

TMT162X-
Fieldbus connector PA M20;M12; L150

further parts

Order code

71090687
Electronic TMT162

Electronic

Drawing number

Order code

4

TMT162E-
Housing TMT162

Housing/housing accessories

Drawing number

Order code

1

TMT162G-
Commubox FXA195

further parts

Order code

FXA195-
Mounting bracket st. steel wall/2" tube

Order code

51004823
Cable gland NPT1/2, 2xd5 cables

Drawing number

Order code

8

51004654
M20x1.5 cable gland, 2xD0.5 cables

Drawing number

Order code

8

51004653
Mounting bracket 2"tube stainless steel

Order code

51006412
Adapter M20x1.5 exter./M24x1.5 intern.VA

Order code

51004915
Cable gland NPT1/2, D4.5-8.5 IP68

Drawing number

Order code

8

51006845
O-Ring 18.77x1.78 HNBR 70o Shore PTFE

Drawing number

Order code

8

71502941
Blind plug M20x1.5 EEx-d+O-ring Alu

Drawing number

Order code

8

71525620
Blind plug M20x1.5 Ex-d+O-ring V4A

Drawing number

Order code

8

71525622
Blind plug G1/2" Ex-d+O-ring Alu

Drawing number

Order code

8

71525621
Blind plug G1/2" Ex-d+O-ring V4A

Drawing number

Order code

8

71525623
Blanks (blind) NPT1/2 V4A

Drawing number

Order code

8

51006888
Blanks (blind) NPT1/2, 3.1655.53

Drawing number

Order code

8

51004490

Language:	Russian
Version:	01/04/2009
File size:	601.7 KB
File name:	TI00267TRU_0409.pdf

	EN
26/01/2015
11/10/2012
01/12/2010
28/11/2006
30/03/2006

Language:	English
Version:	26/01/2015
File size:	4.5 MB
File name:	BA00224REN_1515.pdf

	EN
15/04/2024
20/09/2023
15/03/2007

Language:	English
Version:	15/04/2024
File size:	2.9 MB
File name:	KA00250REN_0424-00.pdf

Language:	French
Version:	20/12/2019
File size:	60.9 MB
File name:	FA00006TFR-Mesure de temperature.pdf

	EN
20/09/2023
01/11/2010
20/10/2006
30/01/2006

	EN
01/08/2010

	EN
21/05/2015

	EN
03/11/2014

Thermocouple TMT162C

Predecessor

Successor

iTHERM ModuLine TM131

Characteristic / Application

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Optional coating

Process connection

Tip shape

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Certification

Back

Техническая информация Omnigrad S TMT162C

Temperature field transmitter iTEMP TMT162

KA iTEMP TMT162

KA iTEMP TMT162

Omnigrad S RTD and TC assembly TMT162R, TMT162C / TMT142R, TMT142C Safety instructions

TMT162R, TMT162C ATEX: Ex d IIC T6…T1 Ga/Gb Ex tb IIIC T85 °C...T450 °C Da/Db Safety Instructions

TMT162R, TMT162C ATEX Ex ia IIC T6…T4 Ga Safety Instructions

Omnigrad S RTD and TC Thermometer with display TMT162R, TMT162C ATEX: Ex ia IIC T6...T1 Ga Ex ia IIIC T85 °C...T450 °C Da/Db Safety Instructions

TMT162R/TMT162C RTD / Thermocouple assembly with field transmitter

Mesure de température

Back

O-Ring 88x3 HNBR 70o Shore PTFE

Cover latch spares kit field housing

Display holder kit (3 pieces)

Spare Parts TMT162

Fieldbus connector PA M20;M12; L150

Electronic TMT162

Housing TMT162

Commubox FXA195

Mounting bracket st. steel wall/2" tube

Cable gland NPT1/2, 2xd5 cables

M20x1.5 cable gland, 2xD0.5 cables

Mounting bracket 2"tube stainless steel

Adapter M20x1.5 exter./M24x1.5 intern.VA

Cable gland NPT1/2, D4.5-8.5 IP68

O-Ring 18.77x1.78 HNBR 70o Shore PTFE

Blind plug M20x1.5 EEx-d+O-ring Alu

Blind plug M20x1.5 Ex-d+O-ring V4A

Blind plug G1/2" Ex-d+O-ring Alu

Blind plug G1/2" Ex-d+O-ring V4A

Blanks (blind) NPT1/2 V4A

Blanks (blind) NPT1/2, 3.1655.53
