Successor
-

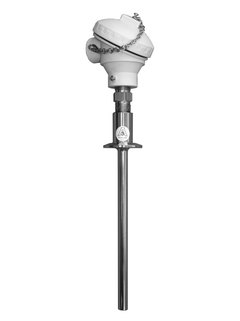

Imperial RTD thermometer with or without thermowell for hygienic applications
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
| FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
US style
modular temperature assembly
hygienic design
hygienic process connection
incl. thermowell / protection tube (metal)
-
Thermowell / protection tube
-
Insert / probe
mineral insulated (MI), flexible
-
Outer diameter protection tube / Insert
1/2'' (12,70 mm)
3/4'' (19,05 mm)
-
Max. immersion length on request
up to 2.743 mm (108,00'')
-
Material protection tube/ thermowell
-
Process connection
hygienic:
clamp connections TRI-Clamp / Micro-Clamp
-
-
-
Operating temperature range
PT 100:
-50 °C ...200 °C
(-58 °F ... 392 °F)
-
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
-
Accuracy
class A acc. to IEC 60751
class B acc. to IEC 60751
-
Response time
depending on configuration
-
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
-
Certification
3A
FDA
ASME BPE 2002
SIL (transmitter only)
2 documents
-
Technical Information TH27
Hygienic RTD assemblies with thermowells and spring loaded insert
|
Language:
|
English
|
|
Version:
|
14/10/2011
|
|
File size:
|
1.8 MB
|
|
File name:
|
TI00139ren_0111.pdf
|
-
TH27
Compact Instructions
Hygienic RTD assemblies with thermowells and spring loaded insert
|
Language:
|
English
|
|
Version:
|
04/02/2013
|
|
File size:
|
677.8 KB
|
|
File name:
|
Ka00263ren_1312.pdf
|
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Enclosure TU401, US Style
-
-
-
-
Fixing kit cpl. TMT8x/7x USA(american)
-
iTEMP TMT85, Transmitter FF
-
-
iTEMP TMT84, Transmitter PA
-
iTEMP TMT82, Transmitter HART
-
-
Readwin 2000 Operation + Read. software
-
-
Display Unit Head Transmitter
-
Texts from BDIH missing (TMT181A)
-
Texts from BDIH missing (TMT184A)
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
-
Housing filter plastic F15, 3 pieces
-
-
-
-
