Modular TC or RTD industrial thermometer

iTHERM ModuLine TM151
Industrial modular thermometer

Metric RTD/TC thermometer with barstock thermowell for a wide range of industrial applications

TM151
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Modular, industrial thermometer with barstock thermowell
  • F
  • L
  • E
  • X
©Endress+Hauser

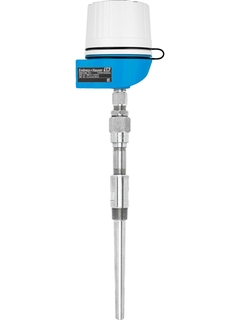

Industrial thermometer TM151 with threaded barstock thermowell

Industrial temperature sensor with flange process connection
  • F
  • L
  • E
  • X
©Endress+Hauser

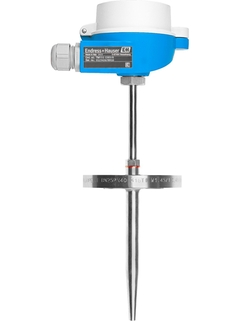

Industrial thermometer TM151 with flanged barstock thermowell

TM151 with flange and helical thermowell
  • F
  • L
  • E
  • X
©Endress+Hauser

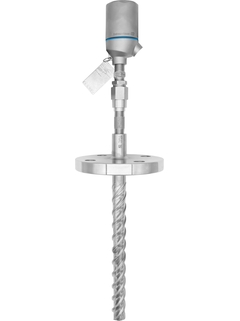

Industrial thermometer TM151 with iTHERM TwistWell thermowell in helical design for high-velocity applications

TM151 NAMUR Flange with Dual Seal
  • F
  • L
  • E
  • X
©Endress+Hauser

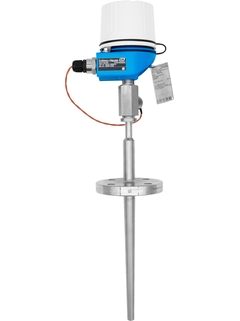

Industrial thermometer TM151 with NAMUR NE170 thermowell and Dual Seal

Modularity by different terminal heads, process connections and thermowells
  • F
  • L
  • E
  • X
©Endress+Hauser

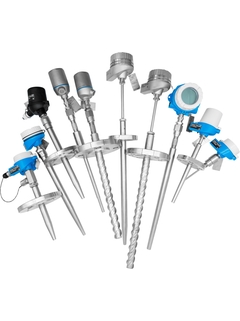

Modular thermometer with a wide selection of terminal heads, process connections and thermowells

Thermometer with stainless steel housing in a typical industrial process plant
  • F
  • L
  • E
  • X
©Endress+Hauser

Temperature assembly for the chemical, oil & gas and power & energy industries

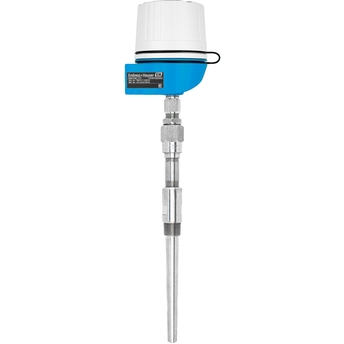

Industrial thermometer TM151 with threaded barstock thermowell

Specs at a glance

  • Accuracy

    Class AA acc. to IEC 60751
    Class A acc. to IEC 60751
    Class B acc. to IEC 60751
    Class special or standard acc. to ASTM E230
    Class 1 or 2 acc. to IEC 60584-2

  • Response time

    depending on configuration

  • Max. process pressure (static)

    depending on the configuration up to 500 bar

  • Operating temperature range

    PT100 TF iTHERM StrongSens:
    -50 °C ...500 °C
    (-58 °F ...932 °F)
    PT100 TF iTHERM QuickSens:
    -50 °C …200 °C
    (-58 °F …392 °F)
    PT100 WW:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)
    PT100 TF:
    -50 °C ...400 °C
    (-58 °F ...752 °F)
    Typ K:
    max. 1.100 °C
    (max. 2.012 °F)
    Typ J:
    max. 800 °C
    (max. 1.472 °F)
    Typ N:
    max. 1.100 °C
    (max. 2.012 °F)

  • Max. immersion length on request

    up to 1.500,0 mm (59,06'')

Field of application

iTHERM ModuLine TM151 is a modular metric RTD or TC thermometer with barstock thermowell or to be used with onsite thermowell. It is suitable for every application, from basic functionality to high-end performance across all industries.

  • For universal use across all industries: From heavy industries (Power & Energy, Chemical, Oil & Gas) to utility applications.

  • International certification: e.g. explosion protection according to ATEX, IECEx, CSA C/US and NEPSI.

  • iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity.

Benefits

  • Modular configuration for all applications: A wide selection of components and innovations, all combined under a single order code.

  • Increased efficiency: Fastest response times with QuickSleeve insert and optimal thermal coupling or iTHERM QuickSens sensor design.

  • Enhanced safety: Reliability in demanding applications with iTHERM StrongSens and highest vibration-resistance or Dual Seal second process barrier or iTHERM TwistWell thermowell with helical design.

  • Effortless handling: iTHERM QuickNeck divisible extension neck for minimized maintenance downtime.
