Product picture SS500 single channel H2O, gas analyzer, right angle view

SS500 moisture analyzer

Extremely reliable and tailored to the needs of the natural gas industry

SS500
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

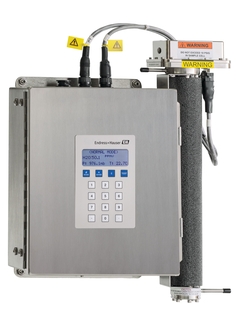

Product picture SS500 single channel H2O, gas analyzer, right angle view
  • F
  • L
  • E
  • X
©Endress+Hauser

SS500 H2O analyzer offers truly reliable measurement and simple operation

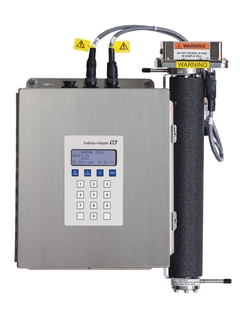

Product picture SS500 single channel H2O, gas analyzer, front view
  • F
  • L
  • E
  • X
©Endress+Hauser
Product picture SS500 single channel H2O, gas analyzer, with sample system, front view
  • F
  • L
  • E
  • X
©Endress+Hauser

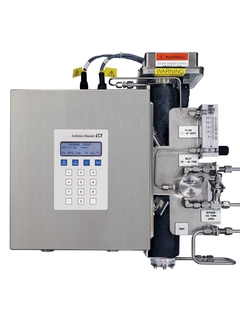

SS500 with sample system insulation

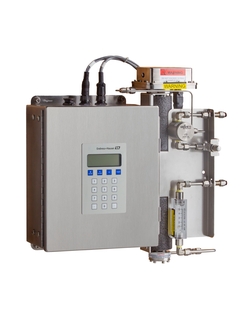

Product picture SS500 single channel H2O, gas analyzer, with sample system, right angle view
  • F
  • L
  • E
  • X
©Endress+Hauser

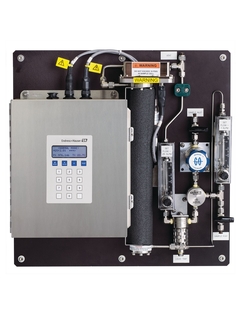

Product picture SS500 single channel H2O, gas analyzer, panel mount, front view
  • F
  • L
  • E
  • X
©Endress+Hauser

SS500 mounted on a panel

SS500 H2O analyzer offers truly reliable measurement and simple operation

Specs at a glance

  • Measuring principle

    TDLAS

  • Measured variables

    Concentration
    Dew Point
    Cell Pressure
    Cell Temperature

  • Hazardous area approvals


    CSA Class I, Division 2
    CSA Class I, Zone 2

Field of application

Using patented tunable diode laser spectroscopy (TDLAS) technology, the SS500 analyzer is an economical choice for measuring H2O concentration in natural gas without coming into physical contact with the stream. The result is a sensor that does not suffer from contamination or drift due to vapor impurities such as glycol, methanol, or amines.

  • Natural gas quality measurements in production, storage, transportation, and distribution

  • Monitoring for natural gas pipelines, processing plants, compressor stations, gathering sites, and distribution quality

  • Suitable for use as a check-measurement device

  • Measurable ranges of up to 0.25 – 100 lb/mmscf (5 – 2110 ppmv)​

Benefits

  • Economical real-time moisture measurements

  • Virtually maintenance-free

  • Reliable in harsh environments

  • Fast and accurate with no wet-up or dry-down delays

  • No contamination or drift due to vapor impurities such as glycol, methanol, amines, hydrogen sulfide, or mercaptans

  • NIST-traceable calibration with analog and serial outputs for remote monitoring

  • CSA certified for CSA Class 1, Division 2 or Class 1, Division 1
